Angled Extension for VKB Gunfighter Joysticks

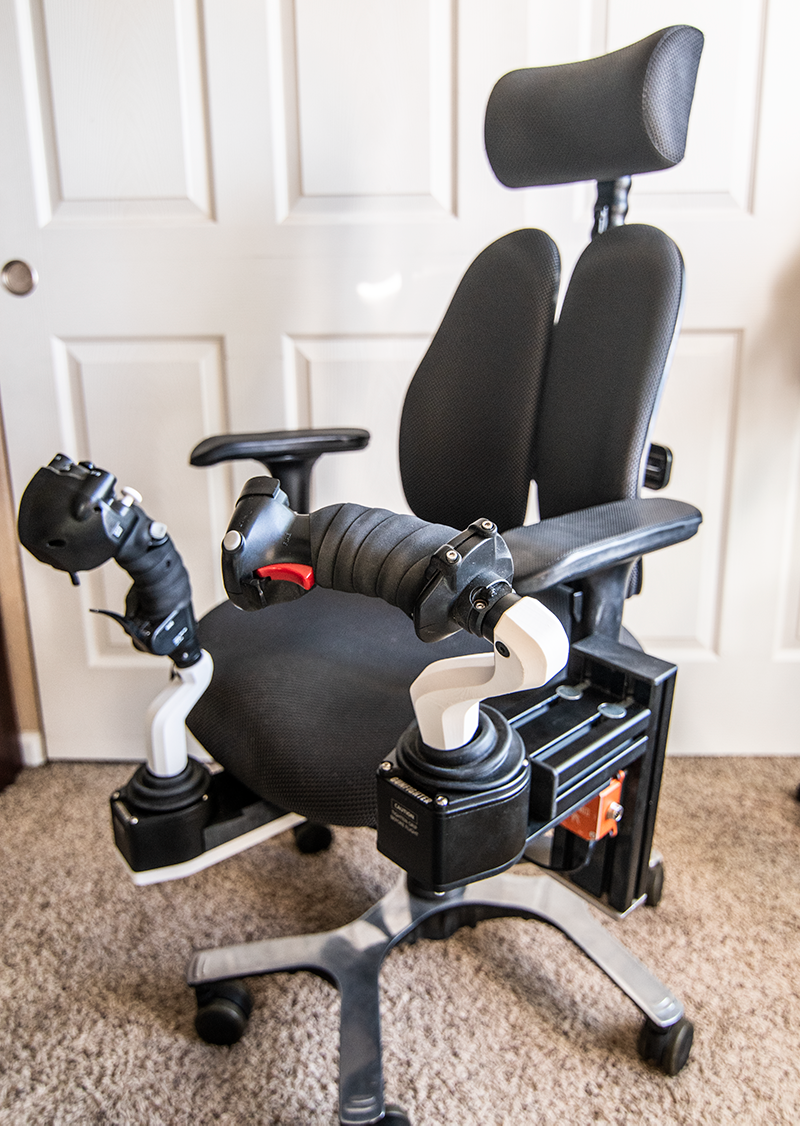

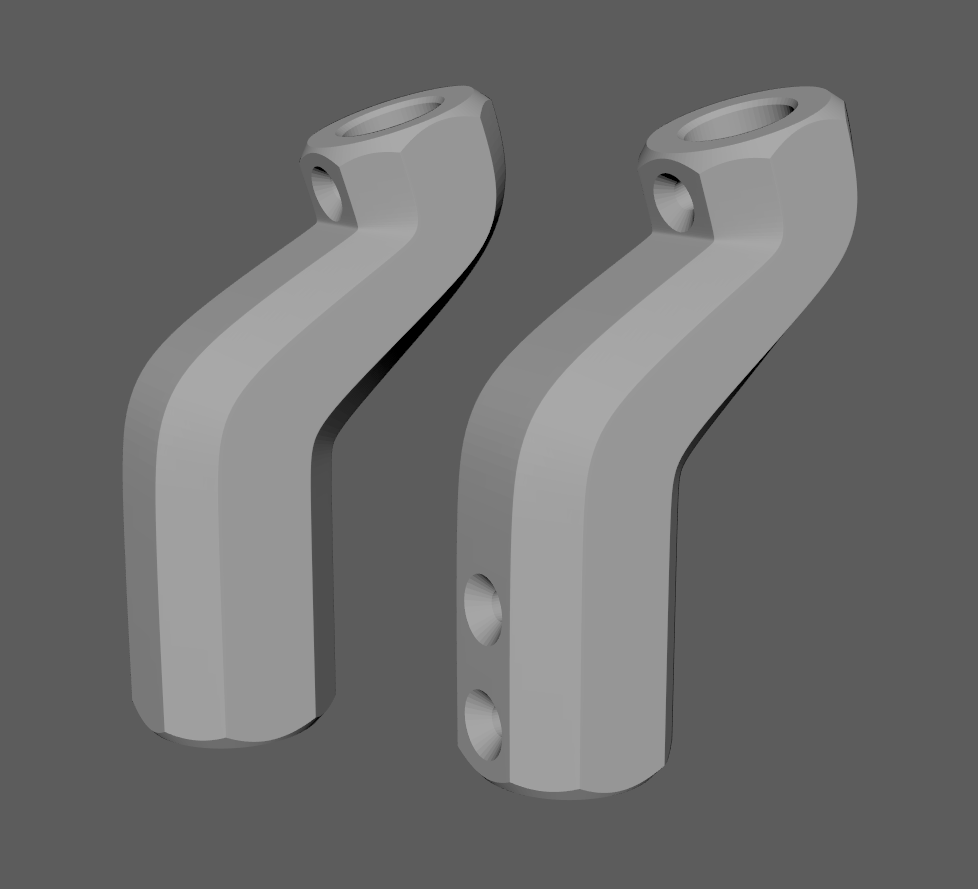

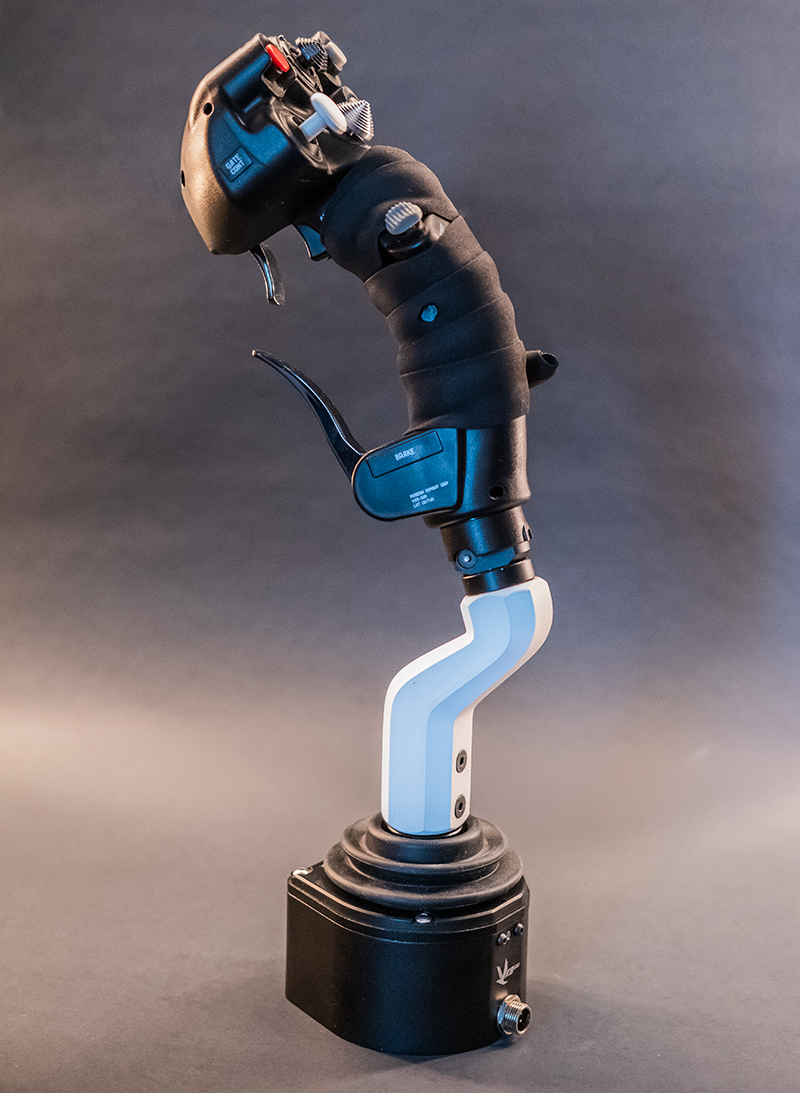

This is a 3D printable insert replacement for a VKB Gunfighter joystick 200mm extension. This insert will shorten VKB's extension to about 135mm (the insert itself is about 110mm), and it will add a 20 degree forward tilt. Two configurations are available: Normal Mount & Reverse Mount. The photos show the Reverse Mount configuration.

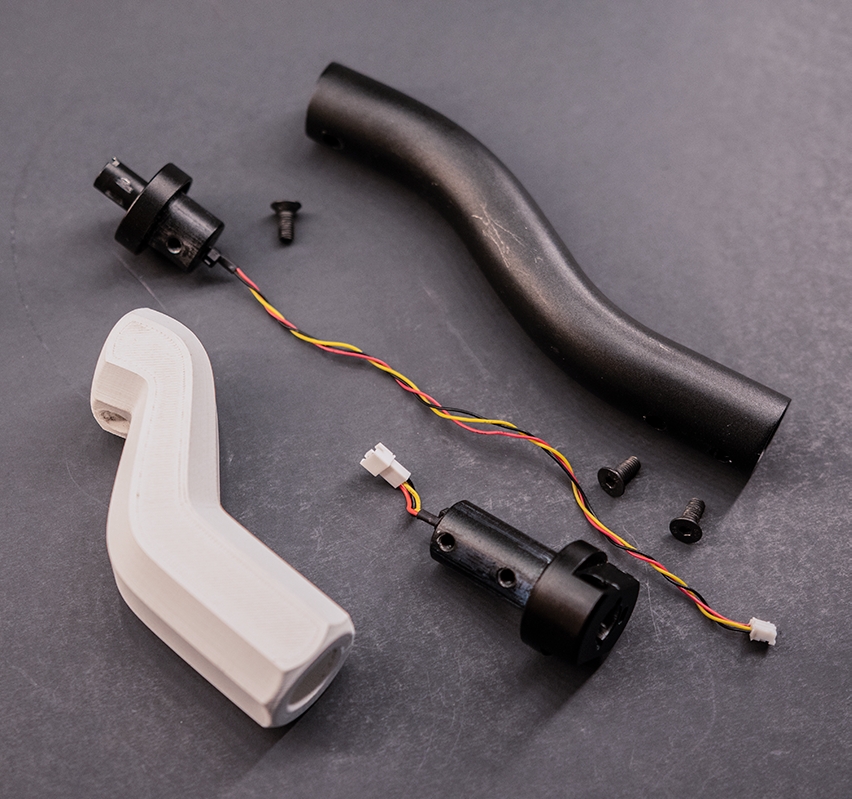

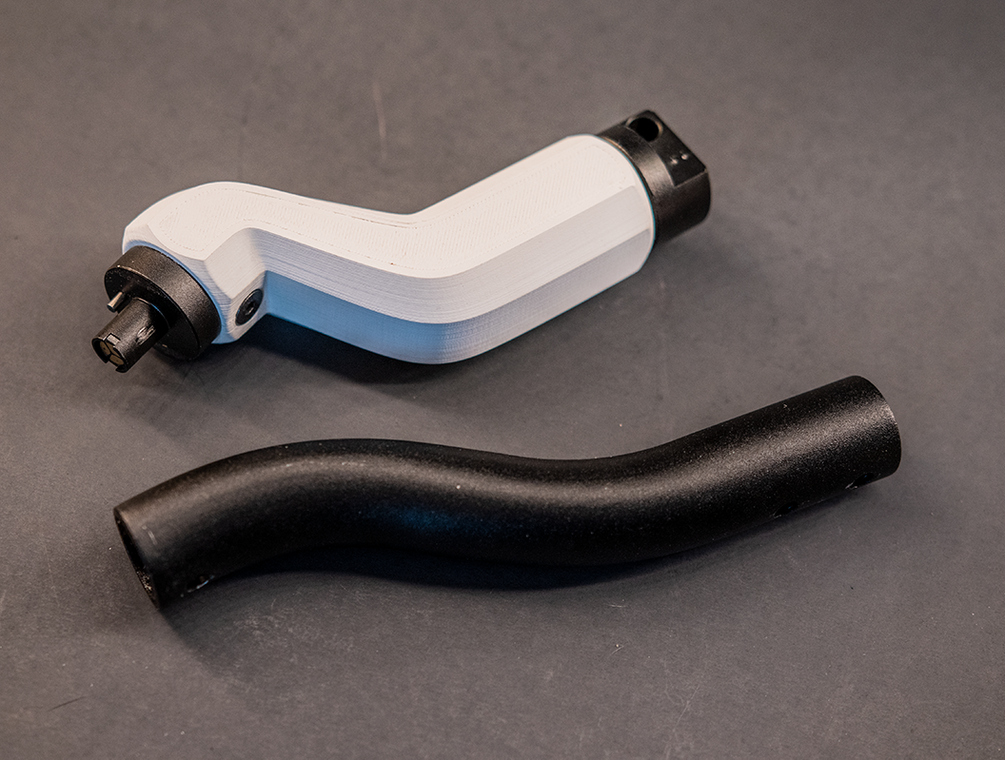

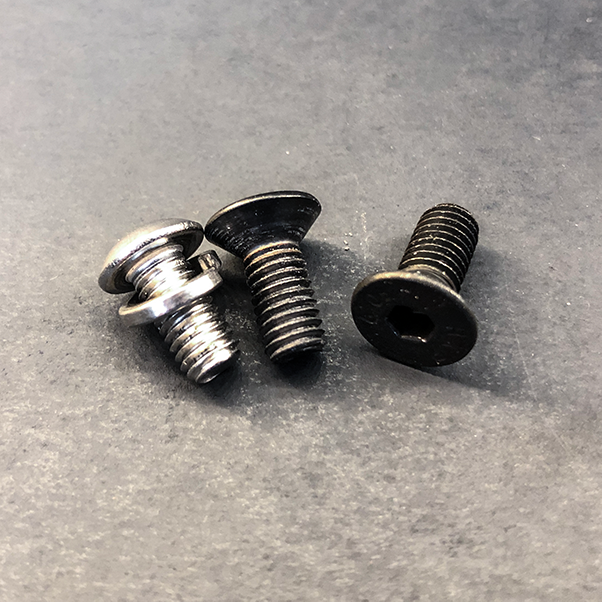

You will need the VKB 200mm extension for this insert to work. The top and bottom pieces of the VKB extension can be separated by removing the bolts and disconnecting the cable. Replace the aluminum pipe with this 3D printed insert. I used M5 x 12mm countersunk flat-head hex bolts for a flush appearance, but you can also use the button-head hex bolts included with VKB's extension.

https://vkbcontrollers.com/?product=stick-extension-for-gunfighter

The insert print dimensions are approximately 3.3cm x 11.4cm x 7cm. File units are in centimeters.
